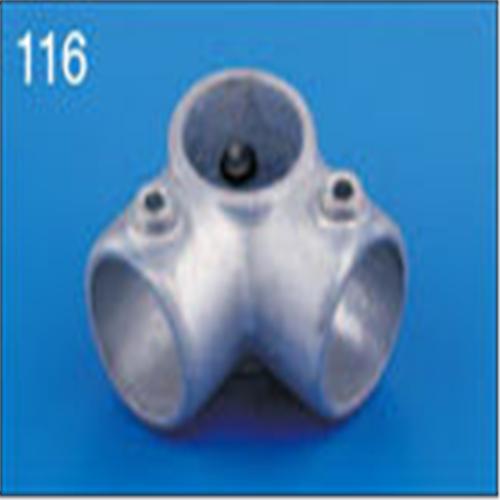

Tube Clamps, Short Tee 116-C (42.4mm)
Tube Clamp or Pipe Clamps for 42.4mm tube This malleable iron casting is also available in 48.3mm tube clamps, 33.7mm Tube Clamp and 26.9mm tube clamps. Complies with B.S. EN1461. And are also known by the term Key Clamps.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
3/8 |
| Weight |
0.76kg |

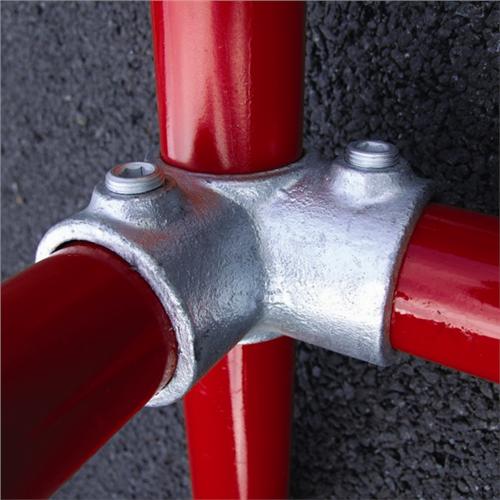

A 90° 3 way corner joint with the vertical passing through the Q clamp fitting. Typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90° corner.
| Equivalent product | |
|---|
| Interclamp |
116 |
| Keeklamp |
21 |
| Fast Clamp |
C21 |
| Alvin |
A20 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
