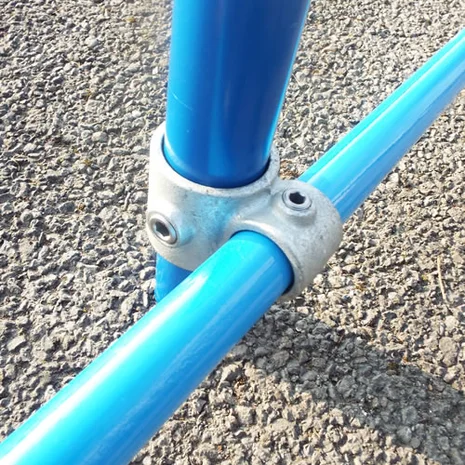

90° Crossover 161-D/B (48.3mm to 33.7mm)
90° Crossover 161-D/B (48.3mm to 33.7mm) 90° Crossover 161-D/B (48.3mm to 33.7mm)
Download PDF: Download Specification
TUV Certificate: Download Specification
Make an enquiry

90° Crossover 161-D/B (48.3mm to 33.7mm)

from only £2.63 (ex.VAT) £3.16 (inc.VAT) was £3.50 (ex.VAT) (24.86% OFF)
Average: reviews











Available to buy
Available for Click and Collect
Add To Basket
Product Code:161-D/B
Bulk Discounts ex. VAT inc. VAT
Order 1 to 25 Tube Clamps  £3.07 £3.68
Order 26 to 49 Tube Clamps  £2.83 £3.40
Order over 50 Tube Clamps  £2.63 £3.16
View more:


Tube Clamps - 90° Crossover 48.3mm to 33.7mm 161-D/B

Tube Clamp or Pipe Clamps for 48.3mm and 33.7mm tube. This malleable iron casting is also available in 48.3mm to 42.4mm. Complies with B.S. EN1461. And are also known by the term Key Clamps.

InfoDetail
Manufacturing Standard B.S. EN1461.
Material Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999)
Allen Key Size 3/8
Weight 0.71kg

A 90° offset crossover fitting for 1 x 48.3mm and 1 x 33.7mm tube. The tube is unable to be jointed within this fitting. Ideal applications are for racking systems or offset guardrail.

Equivalent product
 Interclamp  161
 Keeklamp  45
 Fast Clamp   C40
 Alvin  A28

All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
