Aluminium Internal Swivel Tee (33.7mm) - Kee Lite (L114-6)
An internal swivel fitting designed to accommodate varying angles on handrail, staircases, ramps or bracing. Used in conjunction with types short tee, 90 degree elbow, long tee or 90 degree crossover, it eliminates the need for specially drilled angle fittings. This aluminium tube clamp is to be used with 33mm alloy or steel tube.
These aluminium tube clamps are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms etc... They can also be used as an alternative to fabrication to construct all-aluminium structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc... as they are extremely lightweight.
- Lightweight
- Corrosion Resistant
- Require little long term maintenance
- Fitted with Stainless Steel recessed grub screws
- Main fittings are TÜV approved
|
|
|

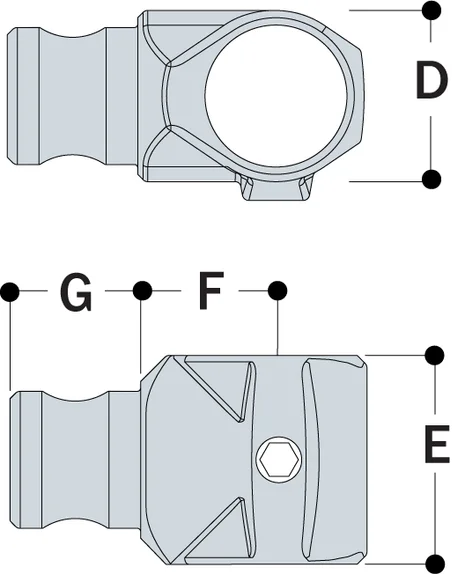

Measurements
|
|
|
Size
|
Code
|
D
|
E
|
F
|
G |
Weight (kgs)
|
|
33.7mm
|
KL147B
|
43
|
56
|
45
|
32 |
0.18
|
|
42.4mm
|
KL147C
|
53
|
64
|
43
|
40 |
0.27
|
|
48.3mm
|
KL147D
|
60
|
70
|
46
|
40 |
0.34
|
|
Info
|
Detail
|
|
Manufacturer
|
Kee Lite
|
|
Material
|
Aluminium
|
|
Allen Key Size
|
1/4
|
|
Weight
|
0.28kg
|
This tube clamp is also supplied in 33.7mm size with a galvanised iron finish.
