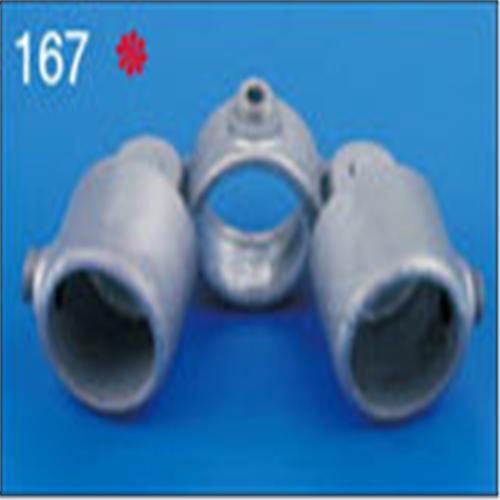

Tube Clamps, Double Swivel Combination 167-C (42.4mm)
Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm tube clamps & 33.7mm Tube Clamp. Complies with B.S. EN1461. And are also known by the term Key Clamps.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
3/8 |
| Weight |
1.25kg |

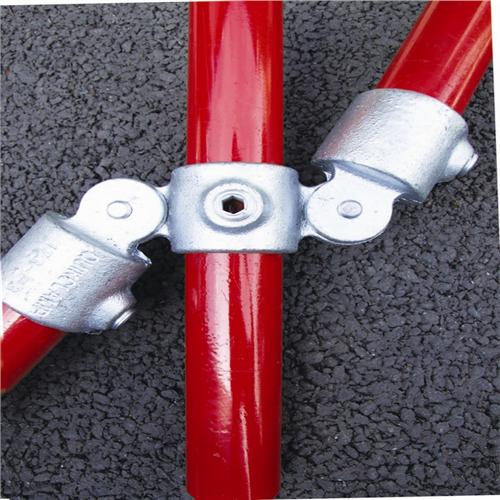

Complete double swivel with the swivel connectors at 180° to each other. Each swivel has a travel of approximately 85° from the horizontal in both vertical directions.
| Equivalent product | |
|---|
| Interclamp |
144 |
| Keeklamp |
64 |
| Fast Clamp |
C13 |
| Alvin |
A14 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
