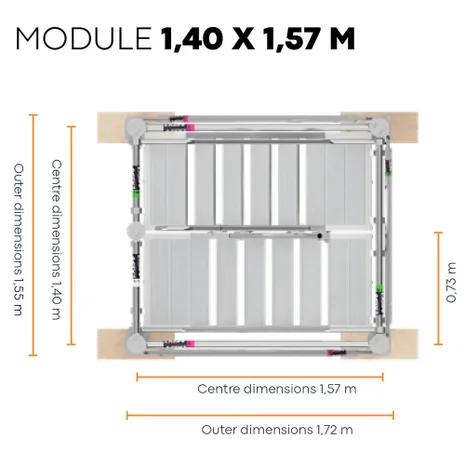

Ring System Staircase 1.40 x 1.57m Module
A staircase with a bay size of 1.40 x 1.57m. perfect for construction sites and renovation projects.
Please note the image shown displays a 1.00m platform tower with the optional storey module on the top (available here). Items highlighted in orange are part of the storey module additions.
- 1.00m platform
- 1.57m length
- 1.40m width
- EN 12810 Quality
- S355JR Steel Grade
- Compatible with other ring system brands
- 186kg overall weight
Ring Lock scaffolding system is designed, tested and manufactured using the highest standards of materials and techniques. Regular testing and assessment of the materials and fabrication methods ensures the highest levels of quality are maintained, providing a robust and durable product to end users that will be in use for years to come.
| CODE |
ITEM |
QTY |
KG |
| AS0001/060 |
ADJUSTABLE BASEPLATE 0.60M |
4 |
4 |
| AS0002/000 |
BASEPLATE |
4 |
1.7 |
| AS0003/100 |
STANDARD WITH SPIGOT 1M |
1 |
5.7 |
| AS0003/200 |
STANDARD 2M |
4 |
10.5 |
| AS0006/073 |
LEDGER 0.73M |
2 |
3.3 |
| AS0006/140 |
LEDGER 1.40M |
2 |
5.5 |
| AS0006/157 |
LEDGER 1.57M |
2 |
6.5 |
| AS0008/140 |
BRIDGING LEDGER 1.40M |
1 |
8.2 |
| AS0010/140 |
DIAGONAL BRACE 1.40 X 2.0M |
1 |
8.5 |
| AS0010/157 |
DIAGONAL BRACE 1.57 X 2.0M |
2 |
9 |
| AS0050/157 |
ALU STAIR 1.5M X 2M |
1 |
24.2 |
| AS0050/510 |
INNER GUARDRAIL 1M HEIGHT |
1 |
10.2 |
| AS0050/290 |
FIXED EXTERNAL GUARDRAIL 2.5M |
1 |
10.7 |
| AS0050/400 |
EXTERNAL RAILING ROTARY FIXING |
4 |
0.7 |
| AS0200/105 |
SPIGOT WITH HALF COUPLER |
1 |
1.8 |
We can supply any list of ring system components. If you have a list of required items, please contact us via
sales@deltagb.com for up to date and competitive pricing.
Please note that ring system items are delivered on an extended leadtime. Most items can be delivered within 3-5 working days but under exceptional circumstances it may take 7-10 working days. At point of order we will contact you to advise an accurate ETA. If you need further information please contact our office via
sales@deltagb.com.
