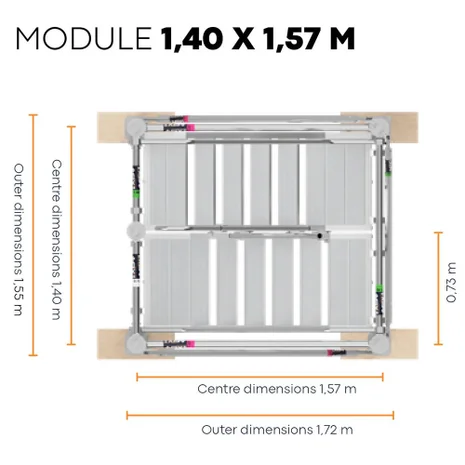

This storey module is compatible with our Ring System Staircase 1.40 x 1.57m and adds an extra 1.00m platform height.
- EN 12810 Quality
- S355JR Steel Grade
- Compatible with other ring system brands
- 91.6kg overall weight
| PART NO. |
ITEM |
QTY. |
KG |
| AS0001/060 |
ADJUSTABLE BASEPLATE 0.60M |
4 |
4 |
| AS0002/000 |
BASEPLATE |
4 |
1.7 |
| AS0003/100 |
STANDARD WITH SPIGOT 1M |
1 |
5.7 |
| AS0003/200 |
STANDARD 2M |
4 |
10.5 |
| AS0006/073 |
LEDGER 0.73M |
2 |
3.3 |
| AS0006/140 |
LEDGER 1.40M |
2 |
5.5 |
| AS0006/157 |
LEDGER 1.57M |
2 |
6.5 |
| AS0008/140 |
BRIDGING LEDGER 1.40M |
1 |
8.2 |
| AS0010/140 |
DIAGONAL BRACE 1.40 X 2.0M |
1 |
8.5 |
| AS0010/157 |
DIAGONAL BRACE 1.57 X 2.0M |
2 |
9 |
| AS0050/157 |
ALU STAIR 1.5M X 2M |
1 |
24.2 |
| AS0050/510 |
INNER GUARDRAIL 1M HEIGHT |
1 |
10.2 |
| AS0050/290 |
FIXED EXTERNAL GUARDRAIL 2.5M |
1 |
10.7 |
| AS0050/400 |
EXTERNAL RAILING ROTARY FIXING |
4 |
0.7 |
| AS0200/105 |
SPIGOT WITH HALF COUPLER |
1 |
1.8 |
Ring Lock scaffolding system is designed, tested and manufactured using the highest standards of materials and techniques. Regular testing and assessment of the materials and fabrication methods ensures the highest levels of quality are maintained, providing a robust and durable product to end users that will be in use for years to come.
We can supply any list of ring system components. If you have a list of required items, please contact us via
sales@deltagb.com for up to date and competitive pricing.
