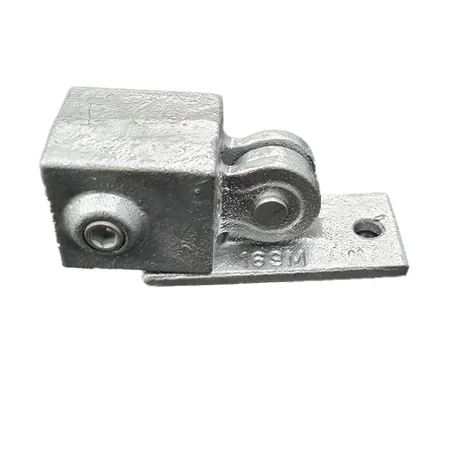

Square Swivel Base Set 169D (40mm)
Tube Clamp or Pipe Clamps for 40x40mm box section. Complies with B.S. EN1461. And are also known by the term key clamps.
Complete locating swivel. Swivel has a travel of approximately 85° from the vertical in each direction.
Our tube clamps can be used to produce a wide range of handrails, furniture pieces, shop fittings, displays etc... By using square tube clamps you can beneift from a more unique design, which is much faster to assemble.
This clamp is suitable for our 40x40 box section available in galvanised steel finish or aluminium.
We also supply a wide range of tube clamp fittings in 33.7mm round style.
Allen keys to fasten this product can be found here.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
1/4 |
| Weight |
0.95kg |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
