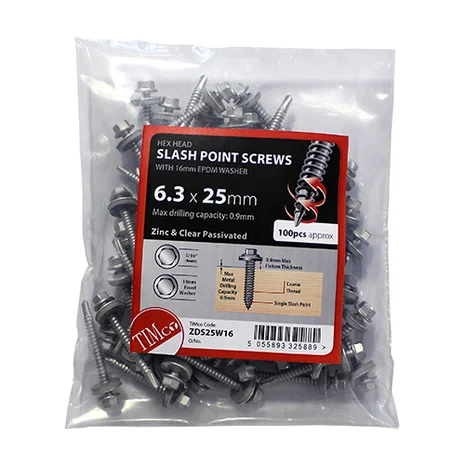

Tek Slash Screw - Sheet to Timber 6.3 x 25mm - (100)
Tek Slash Screw - Sheet to Timber 6.3 x 25mm - (100) Tek Slash Screw - Sheet to Timber 6.3 x 25mm - (100)
Make an enquiry

Tek Slash Screw - Sheet to Timber 6.3 x 25mm - (100)

£4.70 (ex.VAT) £5.64 (inc.VAT)
Average: 1 reviews
Available to buy
Available for Click and Collect
Add To Basket
Product Code:ZDS25W16
View more:

Tek Slash Screw - Sheet to Timber 6.3 x 25mm - (100)

Designed to attach sheet metal (max 0.8mm) to timber. Once installed the EPDM washer prevents water ingress. Exterior plating gives a reliable and durable corrosion resistant coating which resists over 1,000 hours salt-spray. Supplied in bags of 100 pieces.

  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
We stock this screw in 6.3x25mm (most popular), 6.3x32mm, 6.3x45mm, 6.3x60mm, 6.3x80mm, 6.3x100mm sizes for sheet to timber applications. It is also available in a range of sheet to sheet sizes 6.3x22mm (most popular) and 6.3x25mm.

These screws are compatible with our range of corrugated roof sheets including our 8ft/2.4m Corrugated Roof Sheet 10/3 Profile 26g (0.5mm) (most popular specification).

Info Detail
Socket Size (mm) 8
Effective Thread L (mm) 22
Pack Qty 100
Size (mm) 6.3 x 25
Packs per Pallet 720
Corrosion Rating (1-5) 1 - Clean, dry & low humidity environments
Pack Type Bag
FW Ø (mm) 13
Head Type Hex
Finish Zinc
Substrates Steel, Timber
Head H (mm) 6.3
Material Case & Core Hardened Carbon Steel
Point Type Single Slash
Pack Dimensions L x W x H (mm) 150 x 150 x 40
EPDM Washer (mm) 16
Thread Type 60° Single Deep
Type For Timber
Pallet Qty (pcs) 72000
Pack Weight (kg) 0.745
Feature 1 Single slash point to reduce torque and the risk of timber splitting at low edge distance
Thread Coverage Fully Threaded
