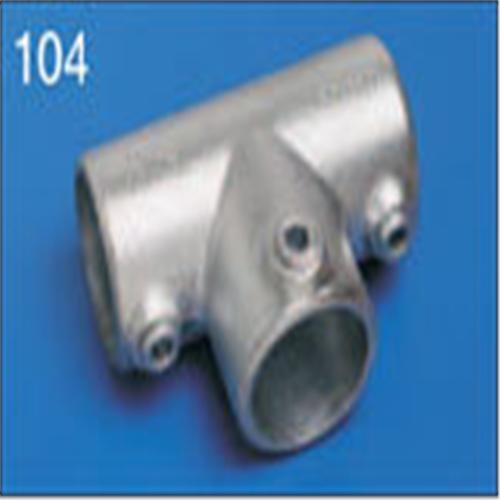

Long Tee 104-B (33.7mm)
Tube Clamp or Key Clamps for 33.7mm hand rail tube. This malleable iron casting is also available in 48.3mm tube clamps, 42.4mm tube clamps and 26.9mm tube clamps. Complies with B.S. EN1461. And are also known by the term pipe clamps.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
1/4 |
| Weight |
0.61kg |

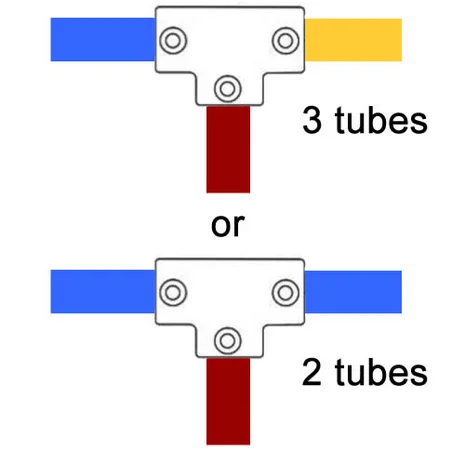

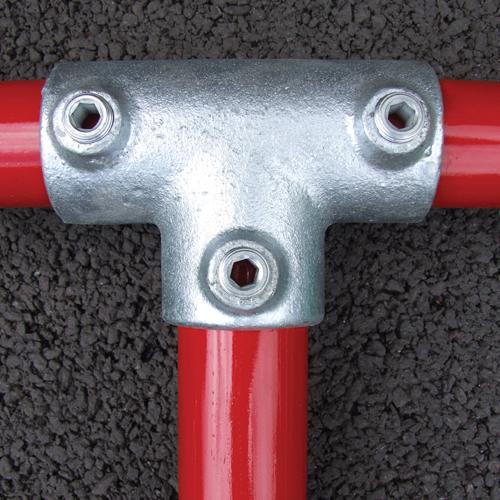

A 90° long tee connection between two tubes. Used on straight and level guardrail to connect the vertical to the rail. This can be used to join tubes in the top of the twin grubscrew long tee. This clamp can be used with either 2 or 3 tubes (see diagram).
| Equivalent product |
|---|
| Interclamp |
104 |
| Keeklamp |
10 |
| Fast Clamp |
C03 |
| Alvin |
A2 |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
