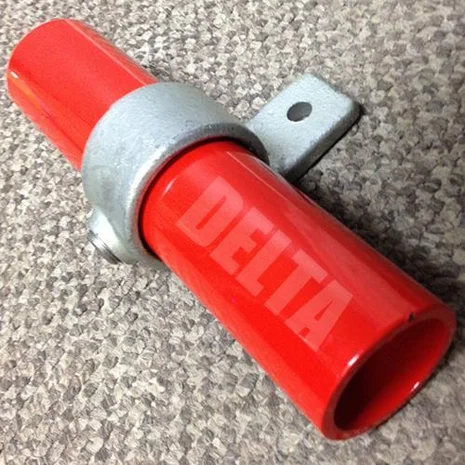

Single-Lugged Bracket 199-C (42.4mm)
Tube Clamp or Pipe Clamps for 42.4mm tube. This malleable iron casting is also available in 48.3mm & 33.7mm tube clamps Complies with B.S. EN1461. And are also known by the term Key Clamps.
To secure this fitting we recommend a 6mm wood screw for furniture & wood applications, and a 7.5mm multi fix screw or 8mm shield anchor for concrete applications.
| Info | Detail |
|---|
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
3/8 |
| Weight |
0.30kg |

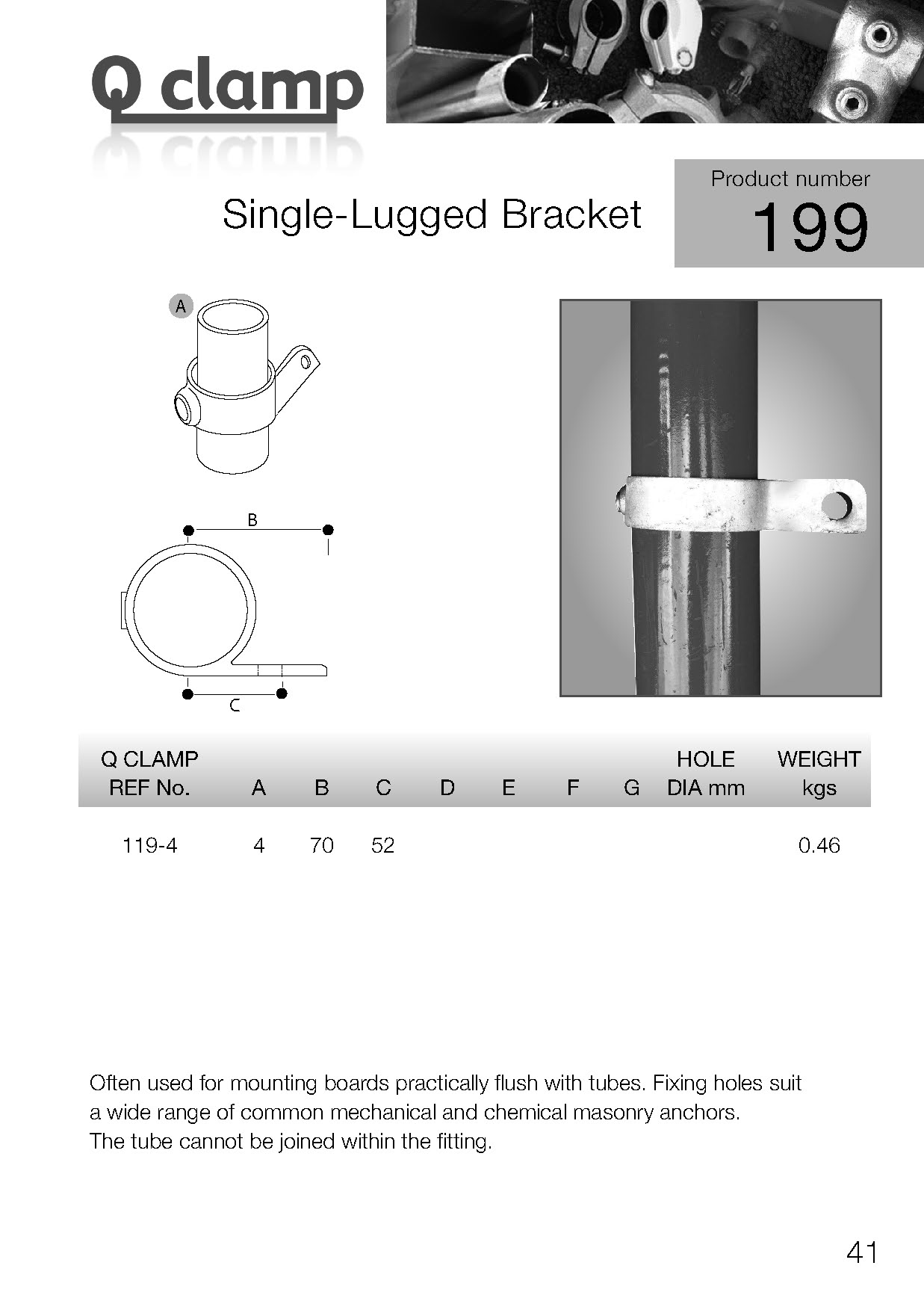

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.
| Equivalent product | |
|---|
| Interclamp |
199 |
| Keeklamp |
199 |
| Fast Clamp |
C34 |
| Alvin |
N/A |
We do not recommend pre-drilling as there can be irregularities in casting that can produce small variations in the size of the holes.
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
